Please contact us through our contact us page to speak to one of our product specialists about your walk-through or security needs or for quotes

Additional versions available:
ADA Compliant Passageway (GMD-1172004)


The listed price does not include installation, commissioning or training.

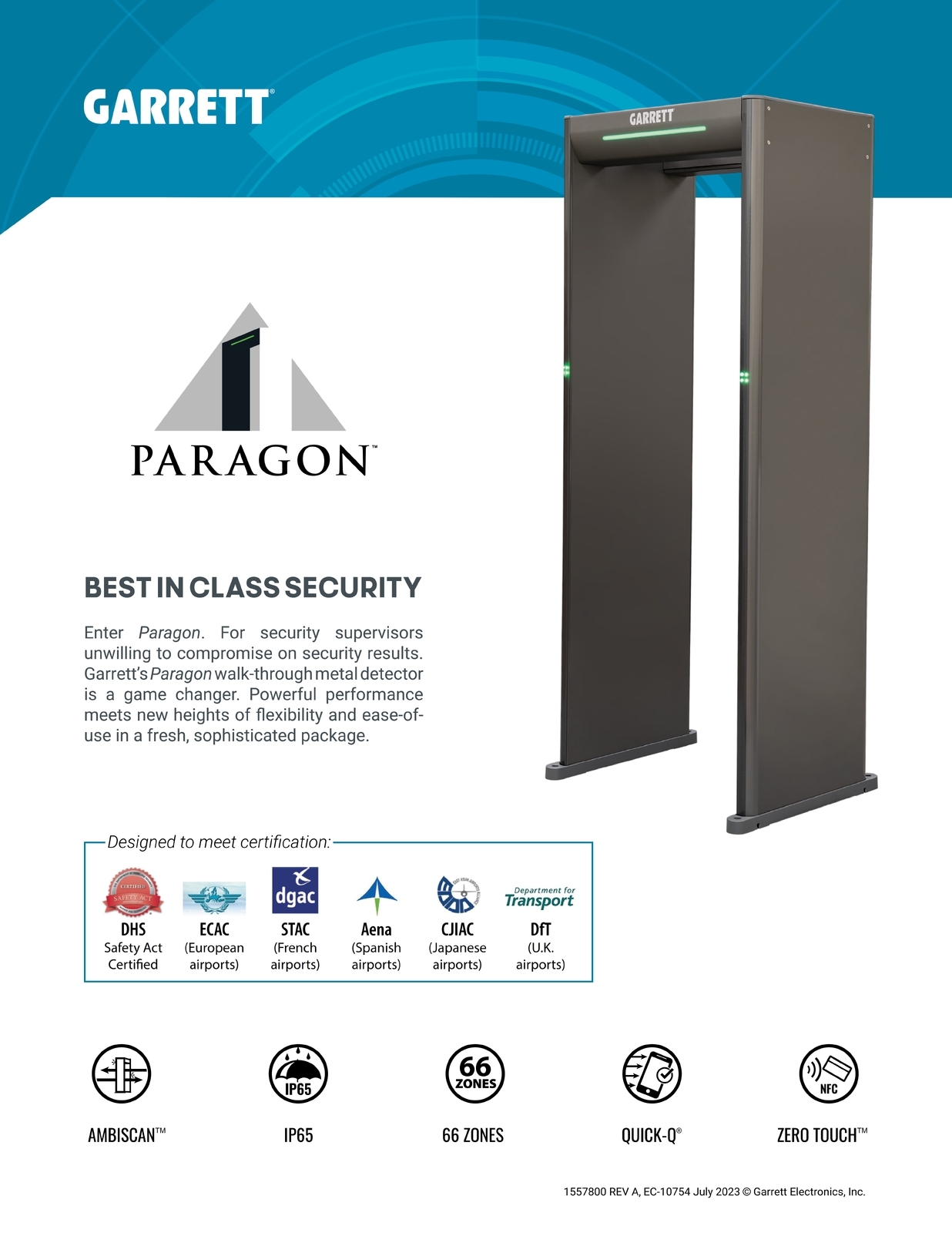

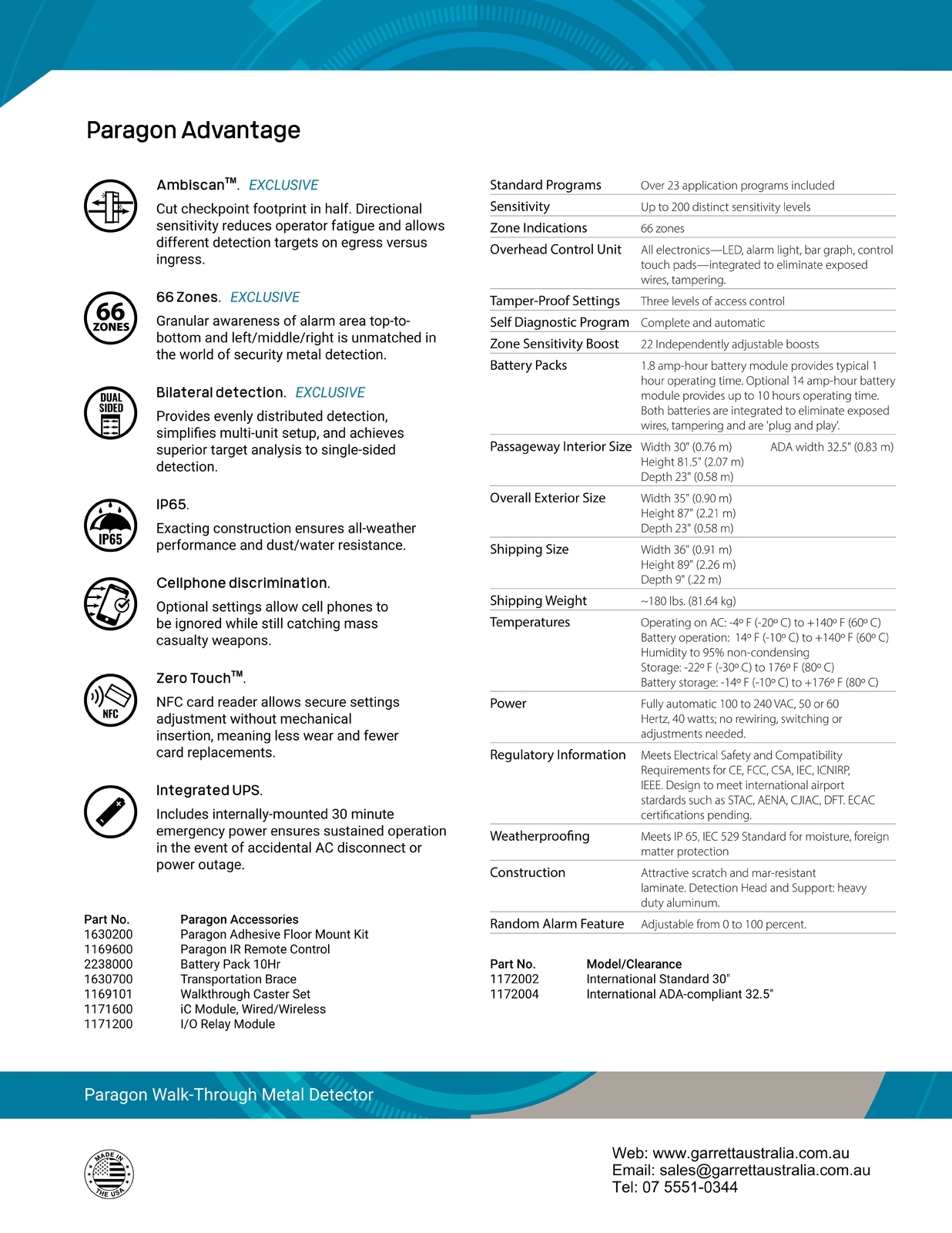

Garrett Paragon Walk-Through Metal Detector Specification Sheet



Best in class Security

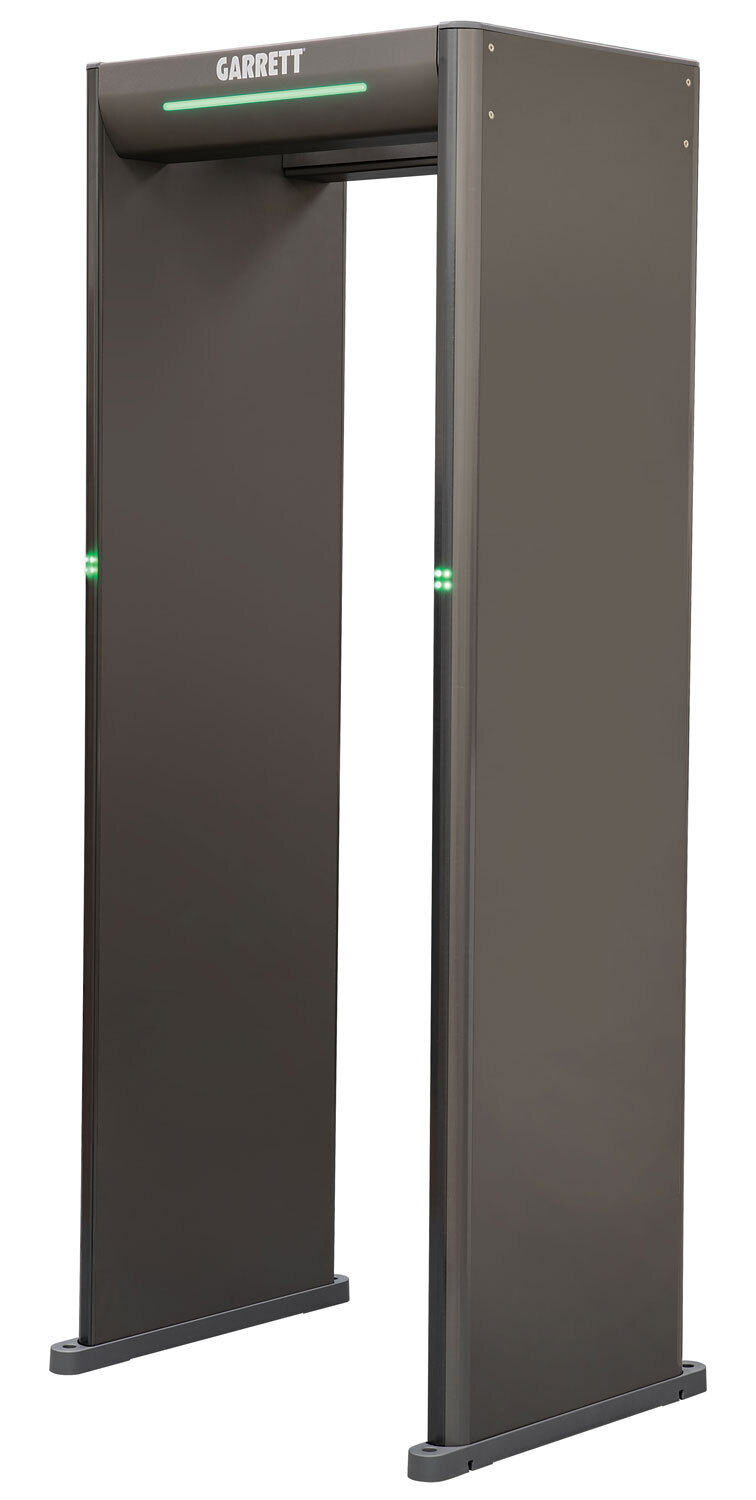

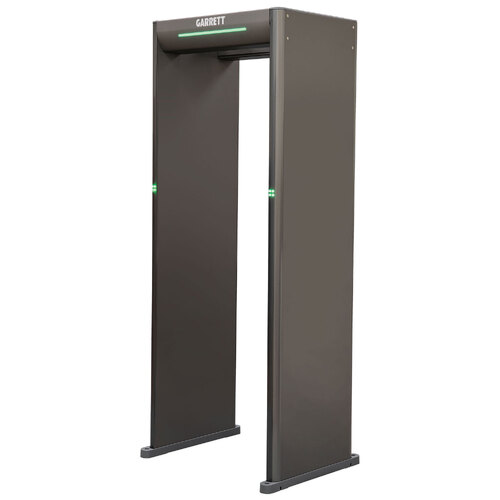

Enter Paragon. For security supervisors unwilling to compromise on security results. Garrett’s Paragon walk-through metal detector is a game changer. Powerful performance meets new heights of flexibility and ease-of use in a fresh, sophisticated package









  Paragon™ Best in class Security PD 6500i™ For maximum perfomance Multi Zone™ Powerful & budget friendly MZ 6100™ Multi-zone power, budget friendly
Detection Zones Paragon brings with it an industry-leading 66 zones – left/center/right identification of targets across 22 horizontal bands.  33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay  20 independent zones; visual and audible alarms 20 independent zones

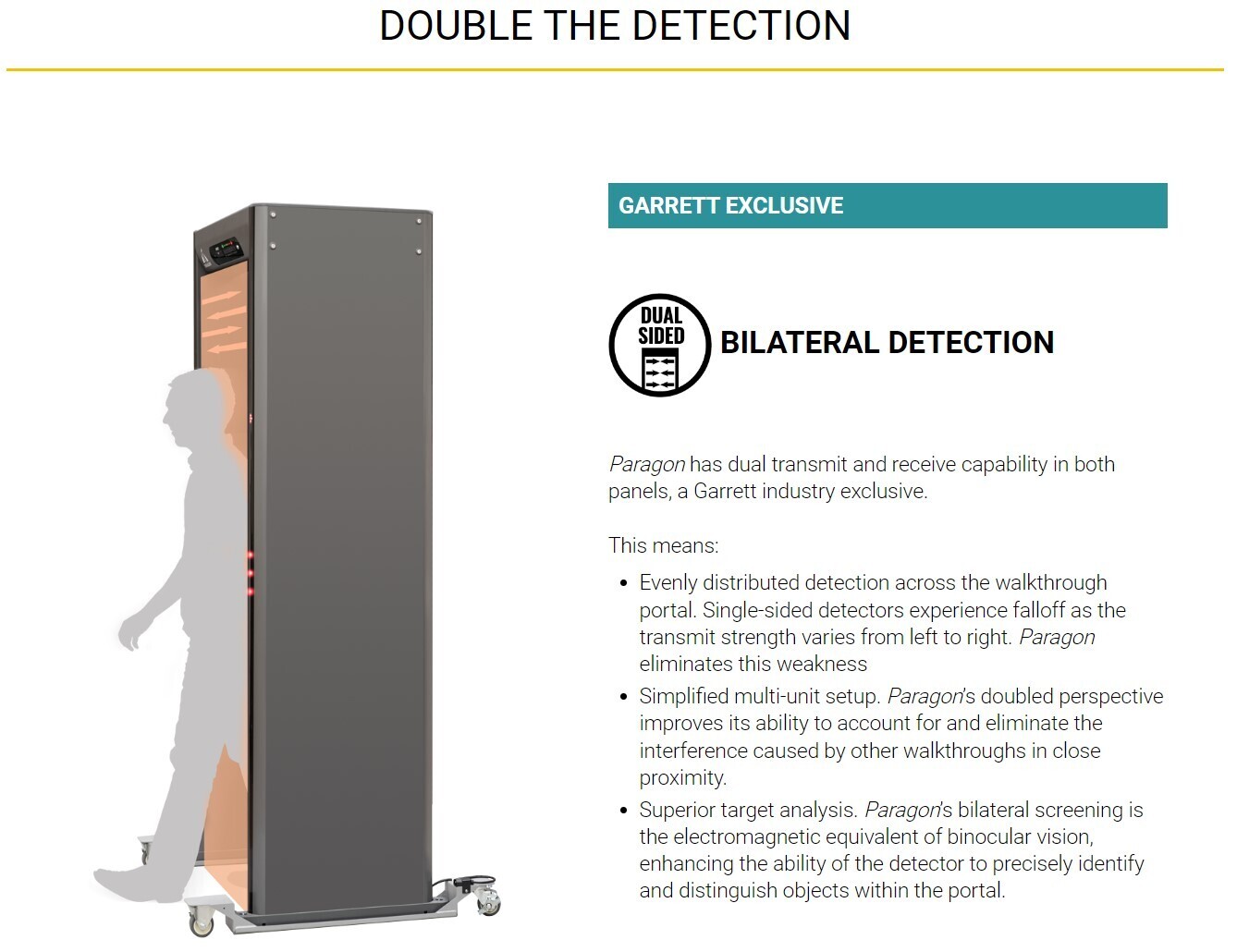

Multi-Unit Synchronization Simplified multi-unit setup. Paragon’s doubled perspective improves its ability to account for and eliminate the interference caused by other walkthroughs in close proximity. Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation

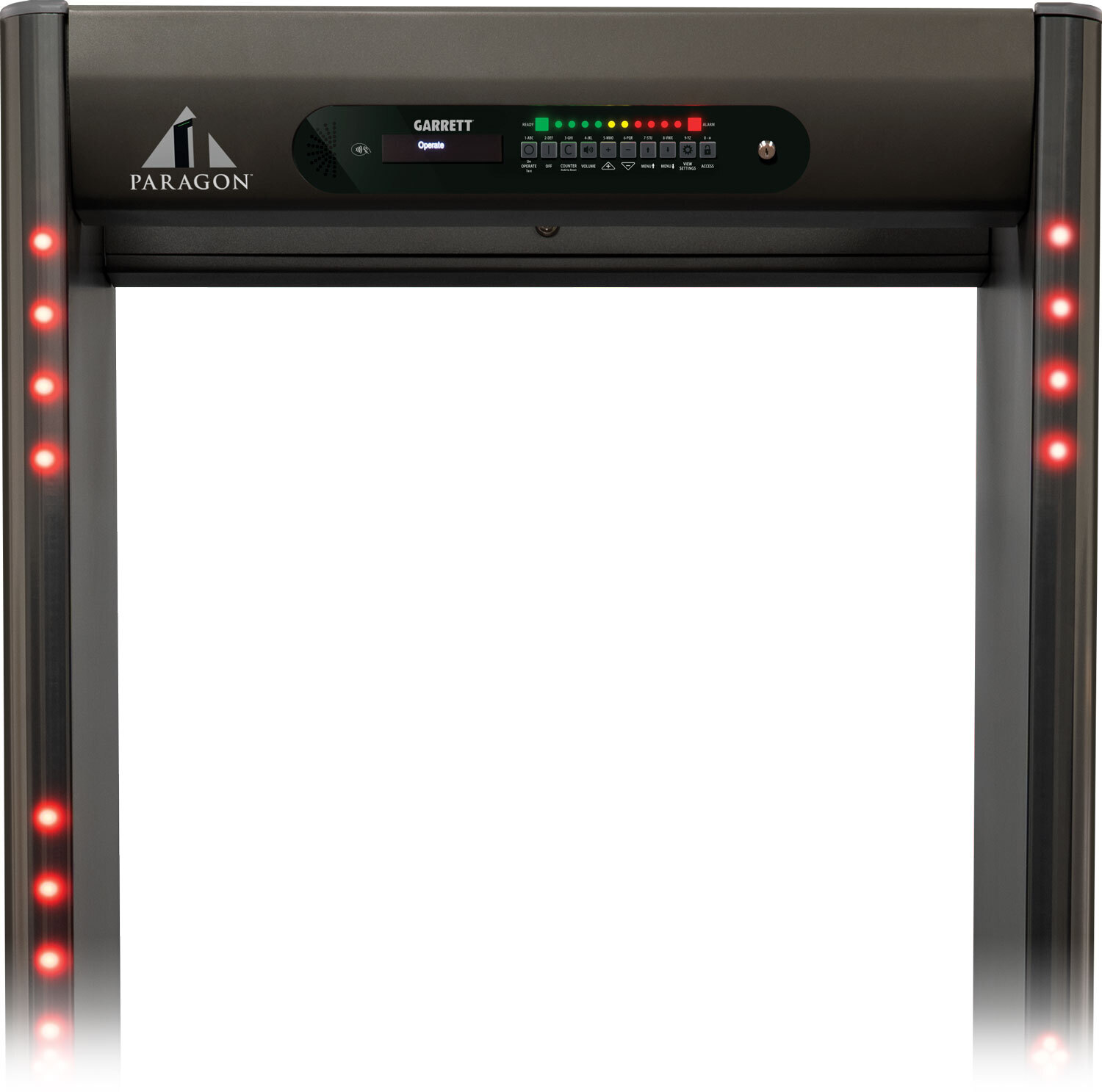

Visual Displays LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images. LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images. LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled. Bright LED indicator lights on entry and exit sides  of Panel A (Panel B zone light kit optional). Status lights are individually configurable as pace lights, ready/alarm lights or disabled.

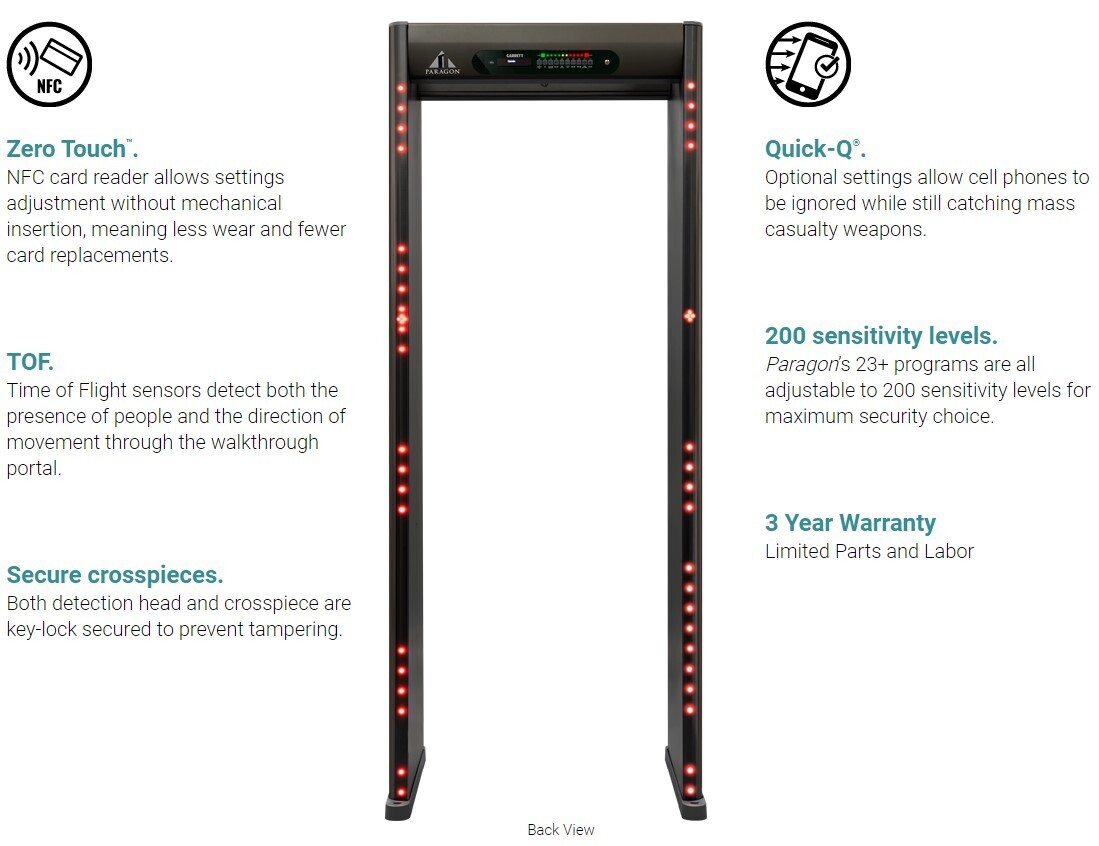

NFC card reader Yes No No No

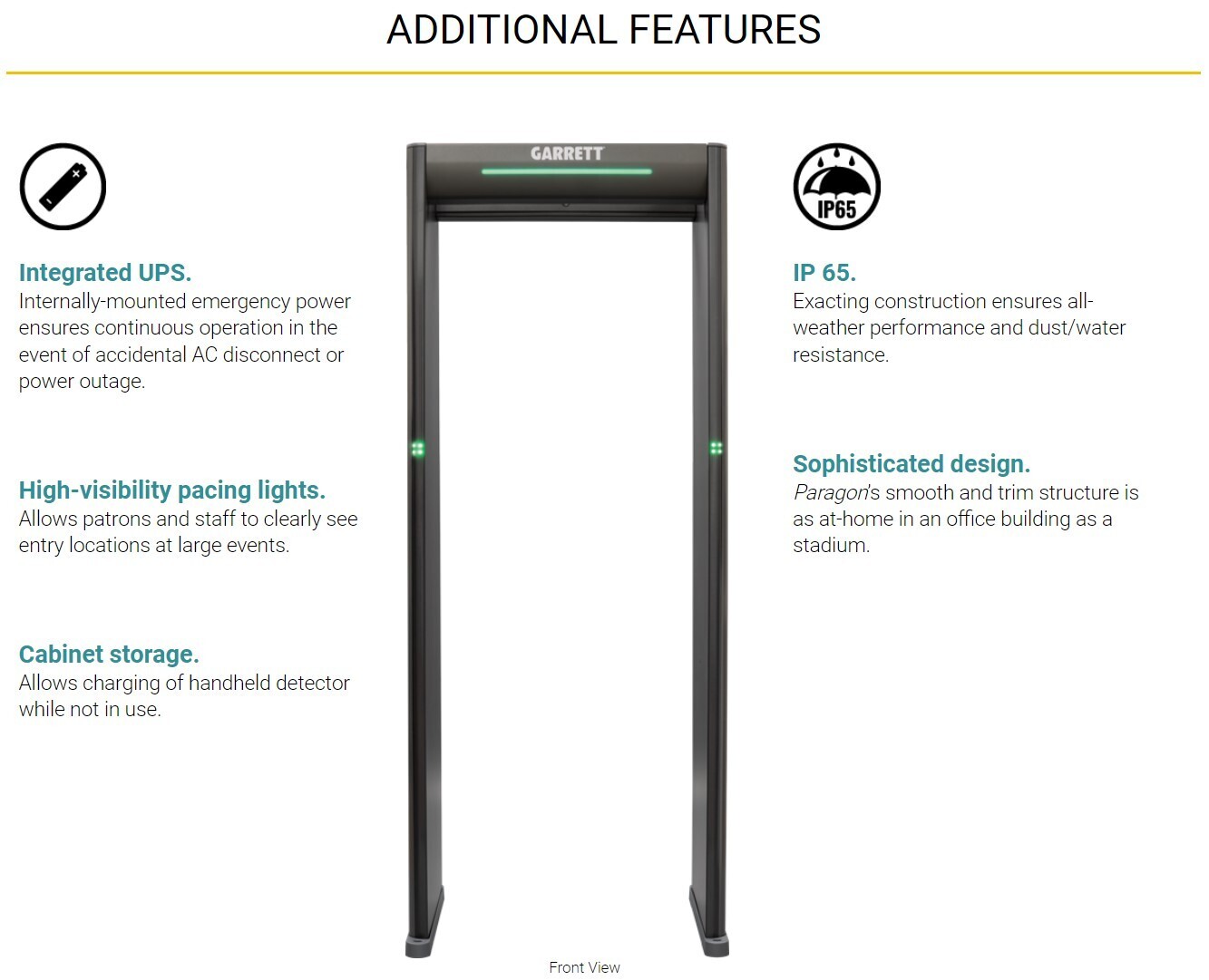

Integrated UPS  30 minute emergency back-up battery No 1-hour emergency back-up battery No
 Field-swappable battery packs  Available seperately No No No
Access Control Keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad. Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad. Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head. Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the  detector head.
Passageway Interior Size "Width 30"" (0.76 m)
(32” version also available)"
Height 81" (2.07 m)
Depth 23" (0.58 m)		 "Width 30"" (0.76 m)
(32” version also available)"
Height 80" (2.03 m)
Depth 23" (0.58 m)		 "Width 30"" (0.76 m)
(32” version also available)"
Height 80" (2.03 m)
Depth 23" (0.58 m)		 "Width 30"" (0.76 m)
(32” version also available)"
Height 80" (2.03 m)
Depth 23" (0.58 m)
Overall Exterior Size Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)		 Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)		 Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)		 Width 35" (0.90 m)
Height 87" (2.21 m)
Depth 23" (0.58 m)
Shipping Size Width 36" (0.91 m)
Height 89" (2.26 m)
Depth 9" (.22 m)		 Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)		 Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)		 Width 35.5" (0.90 m)
Height 91.5" (2.32 m)
Depth 6.25" (.16 m)
Shipping Weight 180 lbs. (81.64 kg) 165 lbs. (74 kg) 151 lbs. (68.5 kg) 151 lbs. (68.5 kg)
Operating Temperatures -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing. -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing. -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing. Minus 4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing.
Power Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed. Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed. Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone. Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed.
Regulatory Information Meets Electrical Safety and Compatibility
Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Design to meet international airport stardards such as STAC, AENA, CJIAC, DFT. ECAC certifications pending.		 Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending.
Weatherproofing Meets IP 65, IEC 529 Standard for moisture, foreign matter protection Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection Meets IP 55, IEC 529 Standard for moisture, foreign matter protection Meets IP 55, IEC 529 Standard for moisture, foreign matter protection
Construction Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum.
Control Outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Solid state switches (low voltage AC or DC) for operating external alarms and control devices. Optional Relay module connected via RS 485 cable provides NO/NC relay contact Optional Relay module connected via RS 485 cable provides NO/NC relay contact
(optional) Remote Control IR remote Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote
(optional) Networking Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software.
Warranty 36 months, limited parts and labor 36 months, limited parts and labor 36 months, limited parts and labor

(GMD-1172002)

SKU GMD-1172002
Brand Garrett Metal Detectors
